60K High Temperature Ultrasonic Spraying Technology Nebulizer

Temel bilgi

Place of Origin:	CHINA
Marka adı:	FUNSONIC
Sertifika:	CE
Model Number:	FSW-6007-L

Minimum Order Quantity:	1 UNIT
Fiyat:	Negotation
Packaging Details:	Packed by carton
Payment Terms:	T/T, Western Union
Supply Ability:	1000 unit per month

En iyi fiyat Şimdi başvurun

Production Name:	Ultrasonic High Temperature Spray Nozzle	Frequency:	60Khz
En yüksek güç:	1-15W	Automized Particle Size Range:	15-40μm
Püskürtme Akışı:	0.5-10ml/dak	Liquid viscosity:	<15cps
Parçacık boyutu:	<8μm	Application:	suitable for Brackets, balloon conduits, wires, flux for selective welding applications
Vurgulamak:	Ultrasonic Spraying Technology Nebulizer , 60K Ultrasonic Spraying Nebulizer , High Temperature Ultrasonic Spraying Nebulizer

60K High-Temperature Ultrasonic Spraying Technology Nebulizer

Description:

60K high-temperature ultrasonic atomization nozzle is a type of ultrasonic atomization nozzle product specifically designed for high-temperature situations. It uses special high-temperature ceramic piezoelectric components and high-temperature structural materials, enabling it to operate normally in temperature environments up to 600 ° C.

Parameters:

Type	FSW-6007-L
Name	Ultrasonic High Temperature Spray Coating Nozzle
Frequency	60Khz (50/60/120Khz for selection)
Atomized particle size range (μm)	15-40
Spray width(mm)	1-3
Spray flow(ml/min)	0.5-10
Spray height(mm)	2-10
Permissible liquid viscosity(cps)	<15
Allow particle size(μm)	<8
Diversion pressure (Mpa)	<0.01
Application	suitable for Brackets, balloon conduits, wires, flux for selective welding applications

Application :

1. Metallurgical industry:
Application scenarios: Atomization cooling and humidification in high-temperature furnaces, molten metal pools, and other environments
Advantages: High temperature resistance, improved equipment stability and production efficiency
2. Chemical industry:
Application scenario: reactant/medium spray of high-temperature reaction kettle, distillation tower, etc
Advantages: Corrosion resistance, helps improve reaction control and product quality
3. Glass industry:
Application scenario: atomization cooling in high-temperature areas such as glass furnaces and annealing furnaces
Advantages: Good high-temperature stability, beneficial for optimizing glass manufacturing processes
4. Electronics industry:
Application scenario: Cleaning and disinfection in semiconductor equipment and electronic component manufacturing
Advantages: Low noise, no environmental pollution, helps improve cleanliness
5. Aerospace field:
Application scenario: engine spray cooling, cabin environment disinfection, etc
Advantages: High temperature resistance, vibration and impact resistance, suitable for harsh environmental applications
In general, the 60K high-temperature ultrasonic atomizing nozzle has good application prospects in various industrial fields that need fine atomization control under high temperature environment, and is a very practical high-end spray equipment. Its excellent performance helps to improve the stability and efficiency of related production processes.

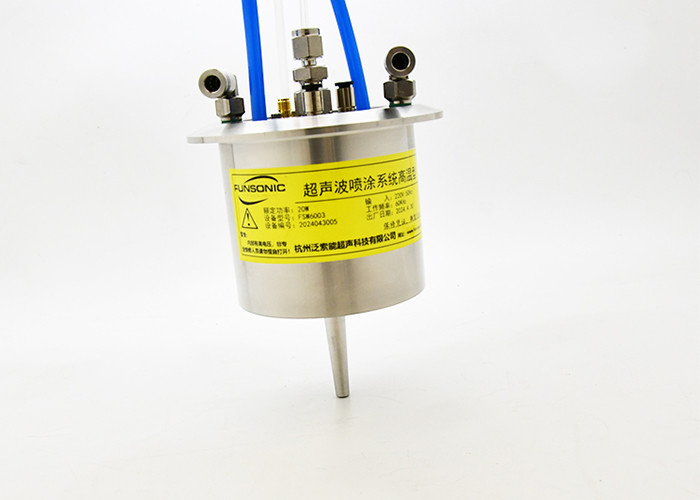

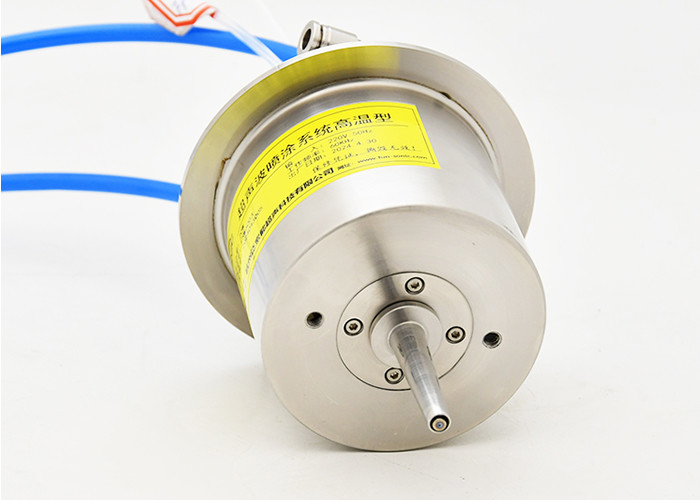

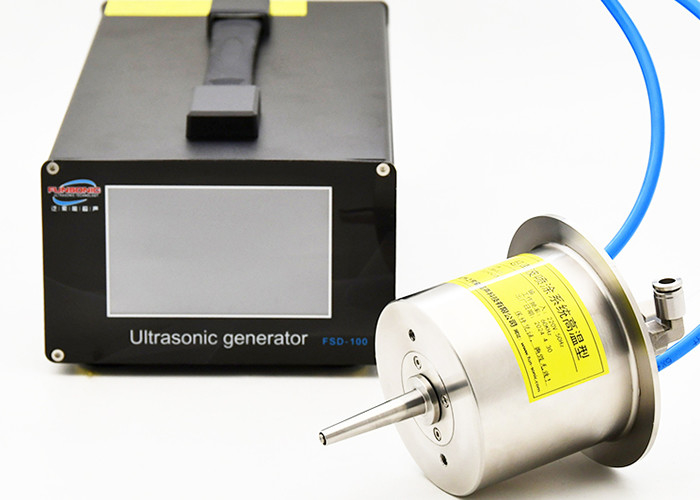

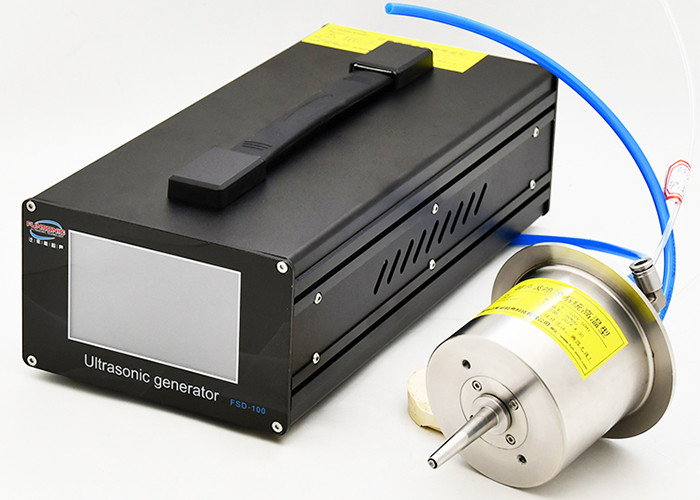

60K High-Temperature Ultrasonic Spraying Technology Nebulizer

60K High Temperature Ultrasonic Spraying Technology Nebulizer 0

60K High Temperature Ultrasonic Spraying Technology Nebulizer 1
